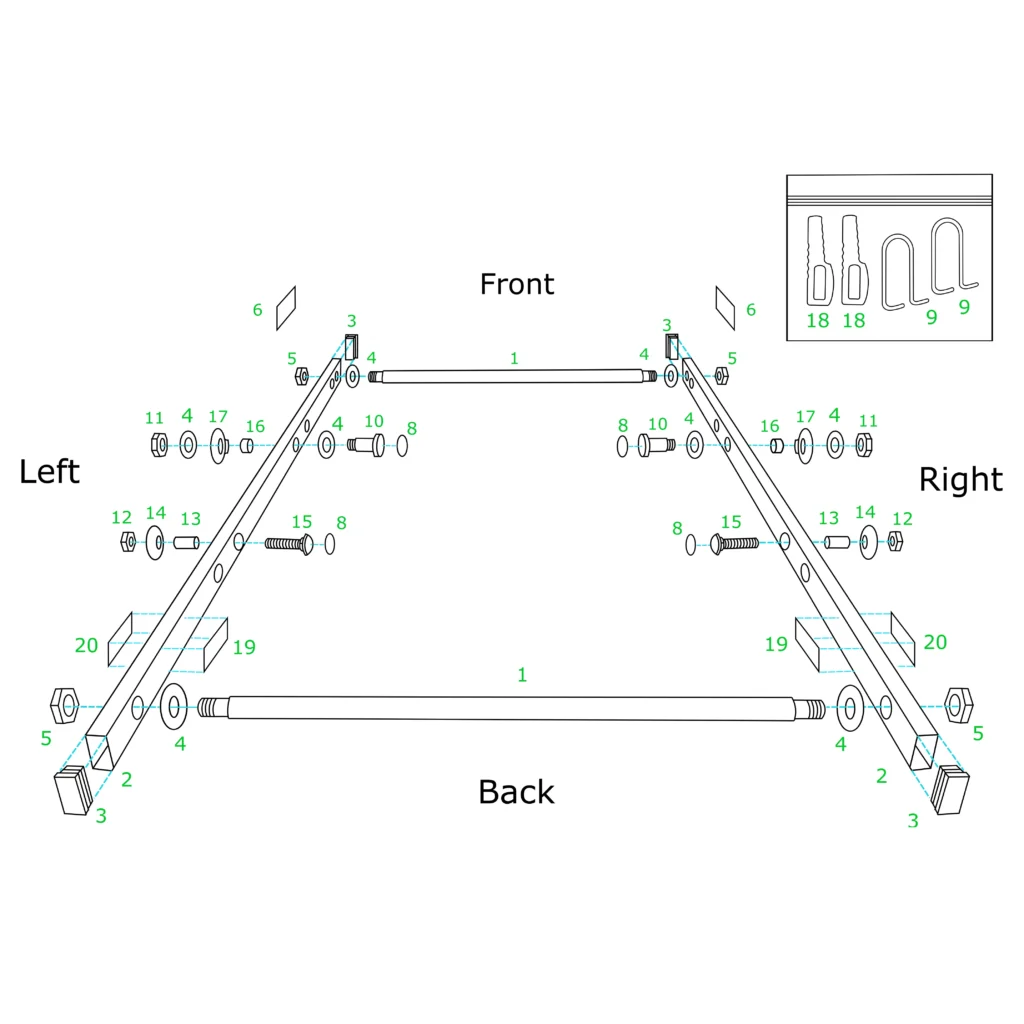

G2 Skinny Cart Base Parts
| Item | Part # | Part Description | Quantity | Price | Action |
|---|---|---|---|---|---|
40-0130 | (Skinny) Base Rod, Aluminum 1-1/8" tubular round with 1"-8 steel studs both ends. (qty needed for full base – 2) | $48.00 | |||
40-0150 | (Skinny-2.0) Base Rod, Aluminum, 1.0" solid round with 7/8"-9 threads both ends. Fits new Generac Cabinets. | $55.00 | |||
40-0114 | (Skinny) Base side rail, SS 48" x 2 x 3/4", plain no hardware, same for left or right. (qty needed for full base – 2) | $59.00 | |||
30-5608 | (Skinny) Cap, 3/4" x 2" rectangle black plastic tube cap insert (qty needed for full base - 4) | $4.00 | |||
20-0078 | Fastener, washer, flat 1" id x 2" od 18-8 stainless steel (qty needed for full base - 8) | $4.00 | |||
20-0150 | Fastener, washer, flat 7/8" id x 2" od 18-8 stainless steel (qty needed for full base - 8) | $3.75 | |||
20-0119 | Fastener, Nut, Jam Hex 1"-8, 18-8 stainless steel (qty needed for full base - 4) | $9.00 | |||
20-0149 | Fastener, Nut, Jam Hex 7/8"-9, 18-8 SS (qty needed for full base – 4) | $8.50 | |||
80-0081 | (Wide) Label, Koliath G2 KB-600-Multi-W (qty needed for full base – 2) | $4.00 | |||
30-5008 | (Skinny) Felt Pad, Adhesive back, 1.5"od x 1/16" thick, Black (qty needed for full base - 4) | $2.00 | |||
40-0075-S | (Skinny) 4" Generator pad lifting hook for Skinny cart only SS (qty needed for full base - 4) | $16.00 | |||
40-0113 | Base Folkrum Bolt, 1"-8 thread aluminum (qty needed for full base - 2) | $18.00 | |||
20-0119.2 | Fastener, Nut, Jam Hex 1"-8 Thin, 18-8 SS (qty needed for full base – 2) | $7.00 | |||
20-0121 | Fastener, Nut, Jam Hex 5/8"-11, 18-8 stainless steel (qty needed for full base - 2) | $5.00 | |||
40-0133 | (skinny) base latch bolt sleeve 0.75"od,0.625"id x 1.0" SS (qty needed for full base - 2) | $5.00 | |||
40-0117 | Base Latch bolt guide cone washer, 2" 18-8 stainless steel (qty needed for full base - 2) | $4.00 | |||
20-0122 | Fastener, Bolt, carriage, 2-1/4" x 5/8-11 Zinc (qty needed for full base - 2) | $4.00 | |||
40-0135 | (skinny) Folkrum Bolt Sleeve 18-8 SS (qty needed for full base - 2) | $4.00 | |||
40-0115 | Base Folkrum bolt guide cone washer 18-8 stainless steel (qty needed for full base - 2) | $4.00 | |||
40-0146 | (Skinny) Pad Wedge to work with 4" generator lifting hooks (qty needed for full base - 2) | $16.00 | |||
80-0085 | Label, base, "SHARP HOLES" (qty needed for full base - 2) | $4.00 | |||
80-0084-R | Label, base, Loading Direction and Anti-Tip RIGHT SIDE | $4.00 | |||
80-0084-L | Label, base, Loading Direction and Anti-Tip LEFT SIDE | $4.00 | |||
LB G2 KB-600-MULTI-S | Complete "Skinny Base" with 1.125" dia aluminum base rods (old) | $349.99 | |||
LB G2 KB-600-MULTI-S 2.0 | Complete "Skinny Base" with 1.0" dia aluminum base rods. Fits new Generac Cabinets (new) | $349.99 | |||
40-0123-R-S Assy | (Skinny) fully base rail assembly RIGHT SIDE ONLY | $149.00 | |||
40-0123-L-S Assy | (Skinny) fully base rail assembly, LEFT SIDE ONLY | $149.00 | |||
40-0130 Assy | (Skinny) Aluminum Base Rod Assembly, 1-1/8" dia. rod with washers and nuts (old) | $61.00 | |||
40-0150 Assy | (Skinny) Aluminum Base Rod Assembly, 1.0" dia. rod with washers and nuts (new) | $68.00 |
