G2 Cord Spool Base
Dual Roller Cord & Cable Base for G2 Lift'n Carts
Price range: $549.98 through $649.98
Rollers For Paying out Heavy Cord & Cable Spools etc.
Save money by buying your generator or service entrance wire in bulk, then cut to length at the job site.

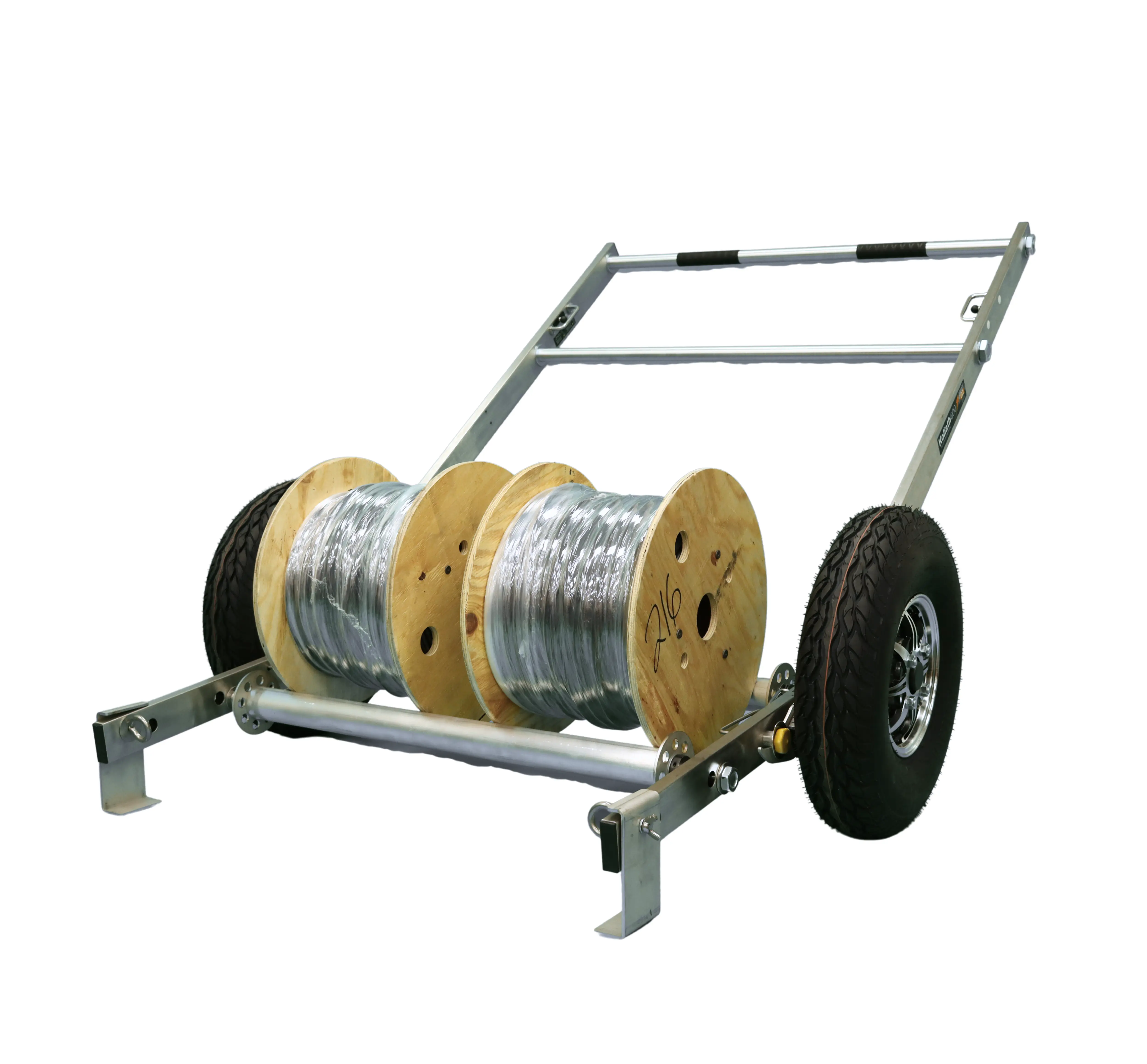

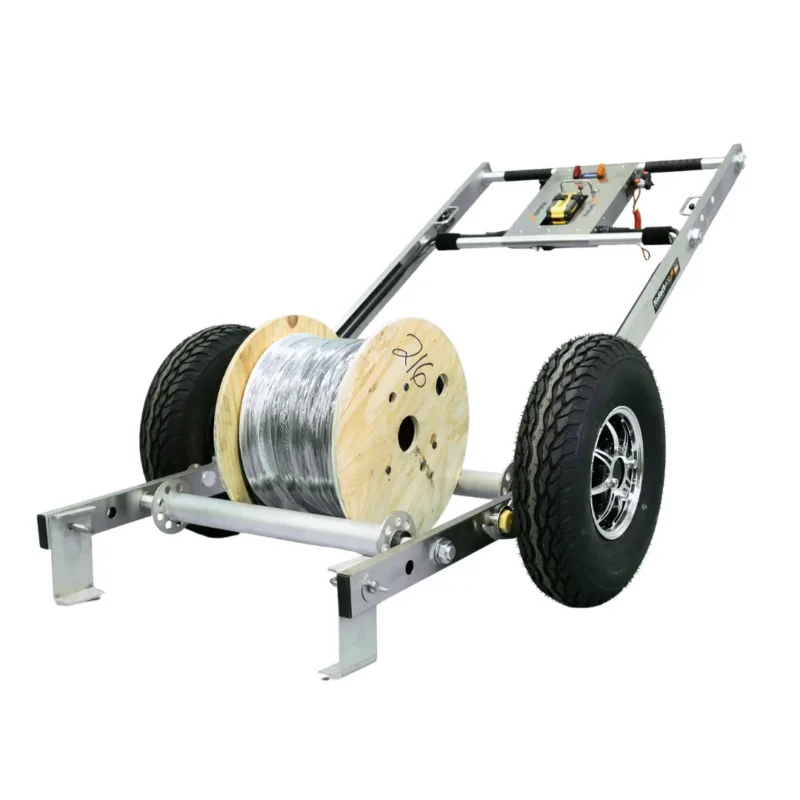

Designed for use with the G2 Lift’n Carts, this accessory base is equipped with two adjustable-position, heavy-duty-ball-bearing rollers for paying out cord and cable spools up to 600lbs. Support stands are included to raise the front off the ground for the spools to rotate, and are designed to dig into grass or dirt to prevent movement. Eye bolts are included to be used as wire payout guides on either or both sides.
- Features & Specs
- Assembly & Use
Description
Application note:

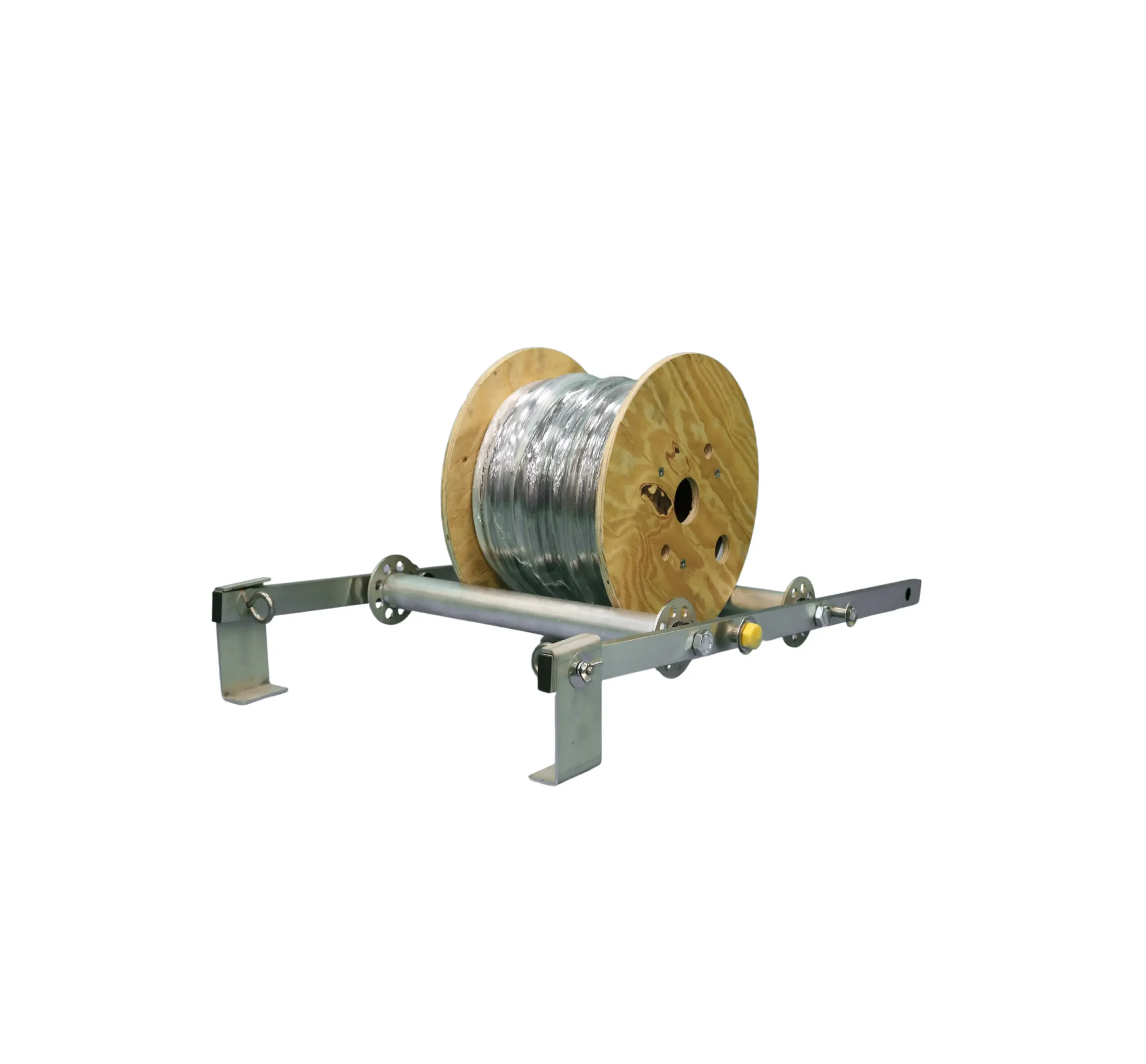

This base can be set and used in place, or picked up with a Lift’n Cart handle to move along a trench for placing the cord/cable/wire where needed. In addition, the base can be assembled around a cord or cable spool on the ground so that you don’t have to lift a 600lb spool into the base.
Additional Note:
This base is compatible with all G2 Handles
| SPECS | |||
|---|---|---|---|
| Item: | Lift'n Cart G2 KA-600 Spool Base | ||
| Skinny Cart | Mid Cart | Wide Cart | |
| Max Spool Width: | 23.25"/ 590mm | 28.50”/724mm | 36.0”/914mm |
| Total Base Weight: | 34 lbs/16kg | 47lbs/21kg | 55lbs/25kg |
| Min / Max Roller: | 16”/406mm to 22"/ 559mm | ||
| Max Combined Lifting Capacity: | 600 lbs/ 272 kg | ||
Assembly & Use
Coming Soon
