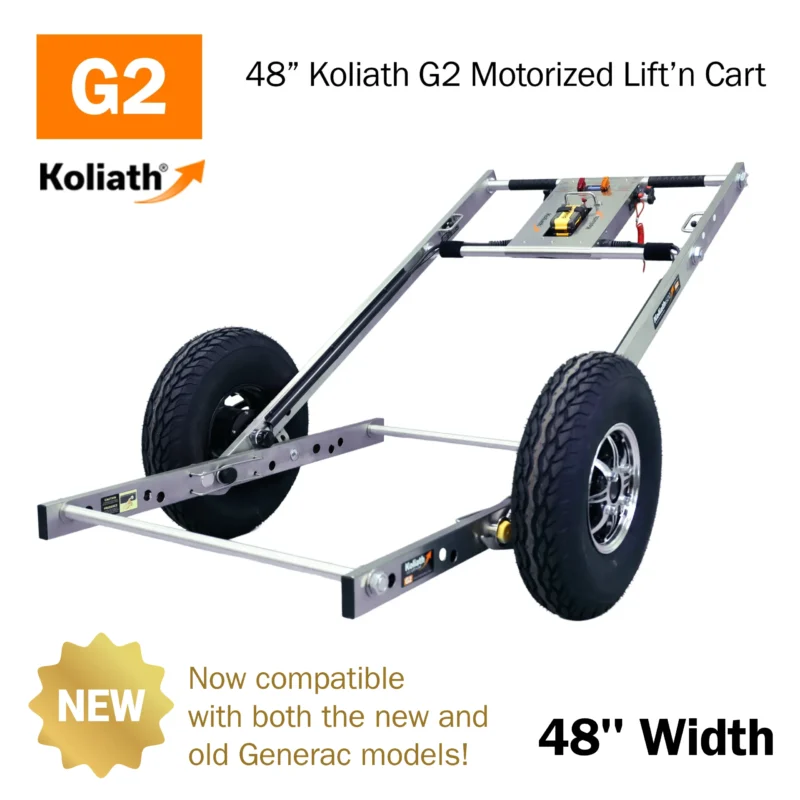

48” Motorized Koliath G2 Lift’n Cart
G2 K600 “Mid” Generator Cart + TorquePack Package
$2,849.97
A Powered Generator Cart for Installers for Narrow 48” Gates
Compatible With:
- Generac 10-26kWatt Guardian Series (made after 2022)
- Kohler/Rehlko 10-26kWatt Residential Series
- Briggs & Stratton 10-26kWatt PowerProtect Series
See features and specs below. Generator, cement pad and other accessories pictured are for reference only. Some assembly required for base and tires. Ships by freight. BATTERY NOT INCLUDED. Any questions? Email us here.
*Hover mouse over photo and click on the plus in the corner to enlarge image
Ships late February
- Features & Specs
- Assembly & Use
- How to Steps
Description
Application Note:
The Lift’n Cart G2 K600 “Mid” generator cart is designed to work with Generac Guardian Series 10-26kWatt generators (only those made after 2022), Kohler/Rehlco 8-26kWatt (must remove base bumpers for 10-12RESV), and Briggs & Stratton 8-26kWatt generators. This generator cart is also only designed to lift these generators from their OEM pallets. This mid size handle’s tires will not straddle a standard 40” or 42” pallet.
BATTERY NOT INCLUDED: This cart is designed to exclusively operate from a DEWALT brand 20V/60V MAX* FLEXVOLT 6, 9 or 12AH Battery.
Features/Benefits:
- Dual 80nm hub motors with high/low torque mode, descent brake, park break and forward/reverse for rough terrain, hills, ramps and loading/unloading trailers
- Powered by a single DeWalt’s 60V FLEXVOLT battery for exceptional power and miles of operation between charges
- This generator cart is designed for one able-bodied person to single-handedly move and place a 600lb generator
- Less than 48” wide outside-to-outside of tires fully loaded for fitting through gates
- Anti-tip back latch/catch system for securing the generator from tipping backwards
- Rugged 22” tires for high lift and good flotation over rough terrain
- 304 Stainless steel handle & base for high strength and corrosion resistance
- 6063 aluminum handle rods, base rods and rims for durability and reduced weight
- Ergonomic handle height for optimum pushing angle
- Narrow and short enough to fit inside a 5-1⁄2 foot full size pickup bed for easy transport
- Stowable lifting hooks for lifting and moving 3” cement pads
Features/Benefits from previous G1 and G1.5 series
- Multiple widths available
- Koliath TorquePack™ battery powered hub-motor option
- Custom aluminum rims vs steel for lighter weight
- Increased handle height (6”) for better pushing angle
- Outboard latches for improved maneuverability of handle over base
- Finger guards and damage protection guards for latch/catch release
- Designed to accept a variety of new accessory bases for A/C units, cord spools and more
SPECS | |
---|---|
Item: | Lift'n Cart G2 K600 Mid +TQ Pkg |
Handle w/tires Width: | 48.0” / 121mm |
Base Inside Width: | 30.3” / 770mm |
Handle Length: | 67” / 1702mm |
Base Length: | 48” / 1219mm |
Tire Diameter: | 22.3” /567mm |
Tire Width: | 5.5” / 140mm |
Weight handle (approx): | 92lbs / 42kg |
Weight base (approx): | 20lbs / 9kg |
Max Lifting Capacity: | 600lbs / 272kg |

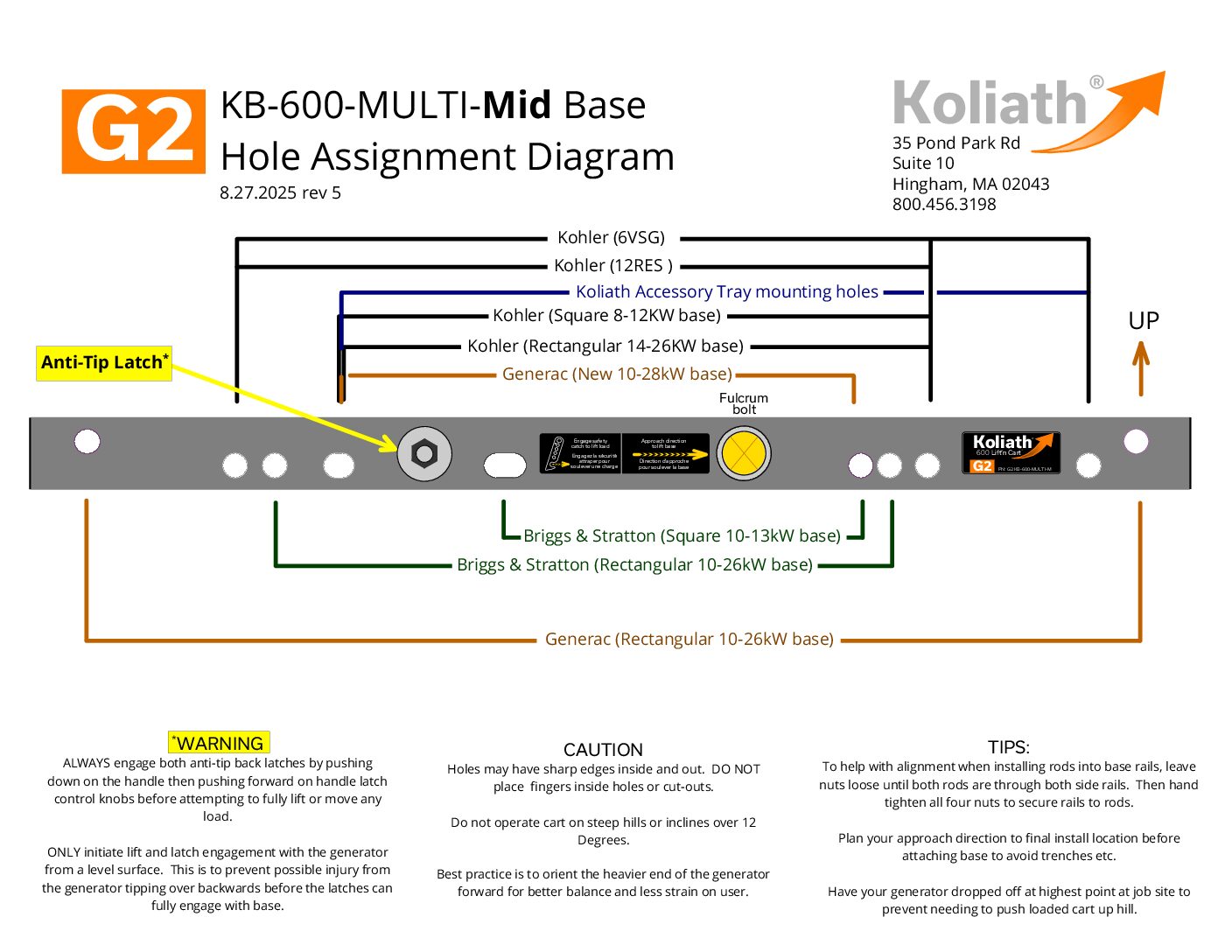

Koliath LB G2 KB-600 MULTI M Base Hole Assignment Diagram 1.2
Koliath Lift’n Cart Motorized Equipment Warnings
Koliath LH G2 KH-600 Handle Assembly Instructions rev1.1
Koliath LB G2 KB-600 MULTI MW Base Assembly Use Instructions rev1.1
STEP 1
Bolt together base to form a rigid lifting frame, then use included pad hangers for lifting standard 3” precast cement generator pads.
STEP 2
Walk up behind base with wheeled handle, hook in front catch on base bolts then push down to auto lock in anti-tip back feature. Push down main handle bar to lift and move cement pad.
STEP 3
Insert base aluminum tubes through generator lifting holes then bolt together base to form a rigid lifting frame. Nuts only need to be hand tightened. Generator can now be lifted and moved. Note: Bases have multiple hole options for different Kohler generators
STEP 4
After placing generator on pad, disengage handle from base carefully then remove aluminum rods from generator.
