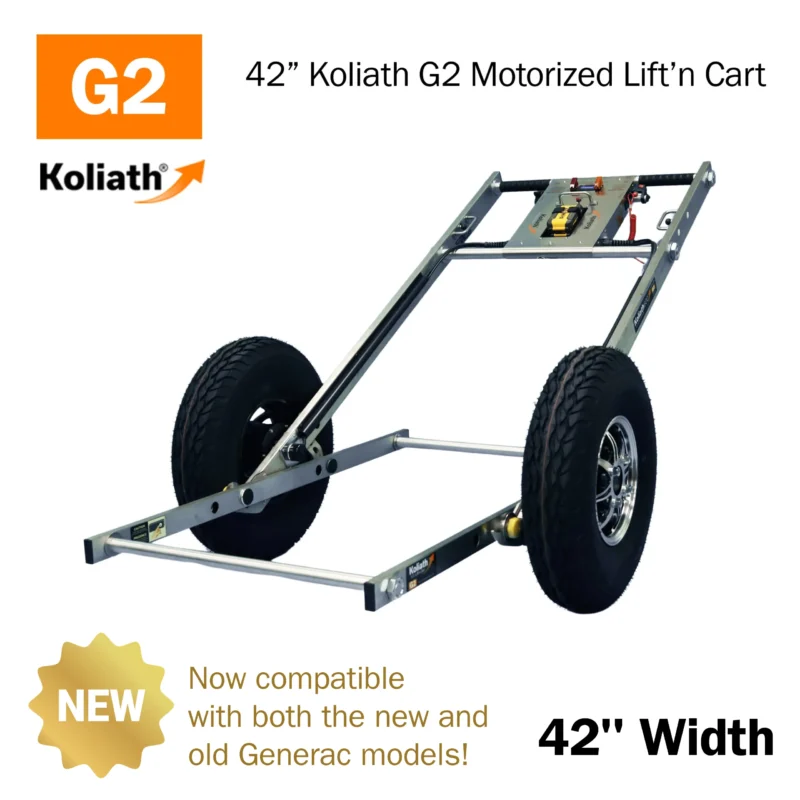

42” Motorized Koliath G2 Lift’n Cart
G2 K600 “Skinny” Generator Cart + TorquePack™ Package

$2,799.97

A Powered Generator Cart for Installers for Narrow 42” Gates

Compatible With:

  • Generac 10-26kWatt Guardian Series (made after 2022)

This width cart is only compatible with Generac brand 3″ & 4″ concrete pads.

See features and specs below.  Generator, cement pad and other accessories pictured are for reference only. Some assembly required for base and tires. Ships by freight. BATTERY NOT INCLUDED.  Any questions? Email us here.

*Hover mouse over photo and click on the plus in the corner to enlarge image

Ships late February

Description

Application Note:

The Lift’n Cart G2 K600 “Skinny” generator cart is designed to work with Generac Guardian Series 10-26kWatt generators, and only those made after 2022. It is also only designed to lift Generac generators from their OEM pallet, In addition, due to the narrow outside-to-outside wheel width for fitting through 42” gates, it may be necessary to partially place the generator onto wide cement or composite pads with the generator cart, followed by manually manipulating the generator to the correct position.

BATTERY NOT INCLUDED: This cart is designed to exclusively operate from a DEWALT brand 20V/60V MAX* FLEXVOLT 6, 9 or 12AH Battery.

Features/Benefits:

  • Dual 80nm hub motors with high/low torque mode, descent brake, park break and forward/reverse for rough terrain, hills, ramps and loading/unloading trailers
  • Powered by a single DeWalt’s 60V FLEXVOLT battery for exceptional power and miles of operation between charges
  • Less than 42” wide outside-to-outside of tires fully loaded for fitting through gates
  • Anti-tip back latch/catch system for securing the generator from tipping backwards
  • Rugged 22” tires for high lift and good flotation over rough terrain
  • 304 Stainless steel handle & base for high strength and corrosion resistance
  • 6063 aluminum handle rods, base rods and rims for durability and reduced weight
  • Ergonomic handle height for optimum pushing angle
  • Narrow and short enough to fit inside a 5-1⁄2 foot full size pickup bed for easy transport

Features/Benefits from previous G1 and G1.5 series

  • Multiple widths available
  • Koliath TorquePack™ battery powered hub-motor option
  • Custom aluminum rims vs steel for lighter weight
  • Increased handle height (6”) for better pushing angle
  • Outboard latches for improved maneuverability of handle over base
  • Finger guards and damage protection guards for latch/catch release
  • Designed to accept a variety of new accessory bases for A/C units, cord spools and more



SPECS
Item:Lift'n Cart G2 K600 Skinny + TQ Pkg
Handle w/tires Width:41.5” / 1054mm
Base Inside Width:25.0” / 635mm
Handle Length:67” / 1702mm
Base Length:48” / 1219mm
Tire Diameter:22.3” /567mm
Tire Width:5.5” / 140mm
Weight handle (approx):90lbs / 41kg
Weight base (approx):15lbs / 7kg
Max Lifting Capacity:600lbs / 272kg
Koliath Lift NCart 1 for Kohler 8 to 26 KW Generators 6



STEP 1

Bolt together base to form a rigid lifting frame, then use included pad hangers for lifting standard 3” precast cement generator pads.

Close up photo of the Koliath Kohler Lift'n Cart k600-k1 generator cart displayed on outside on top of a cement pad



STEP 2

Walk up behind base with wheeled handle, hook in front catch on base bolts then push down to auto lock in anti-tip back feature. Push down main handle bar to lift and move cement pad.

Koliath Kohler Lift N'Cart cart assembled with Kohler generator loaded on top outside. With generator cement pad in front.

STEP 3

Insert base aluminum tubes through generator lifting holes then bolt together base to form a rigid lifting frame. Nuts only need to be hand tightened. Generator can now be lifted and moved. Note: Bases have multiple hole options for different Kohler generators

Image showing how a Kohler generator looks after it's been placed on a cement pad with the Koliath Lift N'Cart and the handle has been removed.

STEP 4

After placing generator on pad, disengage handle from base carefully then remove aluminum rods from generator.
